The Most Popular Plastic Flattop Chains for Curved Conveyors Today

Plastic Flattop Chains for Curved Conveyors – The Optimal Space Solution

In modern manufacturing plants, efficiently utilizing space is always a top priority. Curved plastic flattop chains not only solve the problem of saving space but also enhance operational efficiency with their ability to move smoothly through curves​​.

Why Choose Curved Plastic Flattop Chains?

1. Flexible Design: Easily customizable to fit any production layout.
2. Energy Savings: Smooth operation reduces energy consumption.
3. Wide Applications: Suitable for food, pharmaceutical, and heavy-duty industries.



---

Factors to Consider When Choosing Curved Plastic Flattop Chains

a. Curve Radius

Products with a smaller curve radius are ideal for tight spaces, while larger radii are suitable for high-speed systems.

b. Load Capacity

Ensure the chain can operate stably under heavy loads, especially in packaging and transport industries.

c. Wear Resistance

Opt for high-performance plastics to minimize maintenance costs and extend the lifespan of the system.

---

Five Outstanding Plastic Flattop Chain Products for Curved Conveyors

a. Movex 812 K450 Plastic Flattop Chain

• Technical Specifications:
  • Maximum load: 4500 N.
  • Material: High-performance plastic.
  • Minimum curve radius: 120 mm.
  • Operating temperature: -30°C to +100°C.
  • Maximum speed: 85 m/min​​.
• Applications:
  Designed for food and pharmaceutical industries.

b. Movex 882 K325 Plastic Flattop Chain

• Technical Specifications:
  • Maximum load: 3000 N.
  • Material: POM plastic.
  • Minimum curve radius: 100 mm.
  • Operating temperature: -40°C to +80°C.
  • Maximum speed: 80 m/min​.
• Applications:
  Perfect for high-speed packaging lines.

c. Movex 1873 TAB K350 Plastic Flattop Chain

• Technical Specifications:
  • Maximum load: 2000 N.
  • Material: PFX wear-resistant plastic.
  • Minimum curve radius: 110 mm.
  • Operating temperature: -20°C to +100°C.
  • Maximum speed: 75 m/min​​.
• Applications:
  Ideal for automation and logistics.

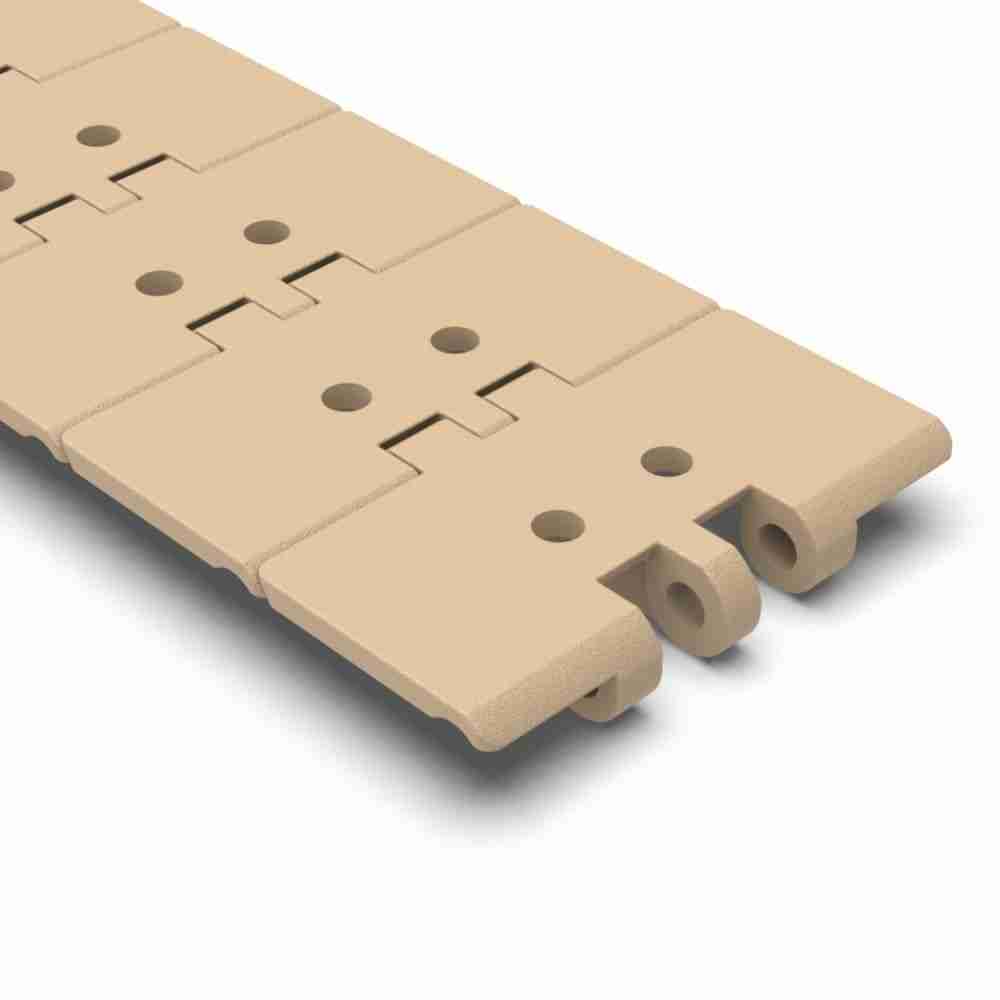

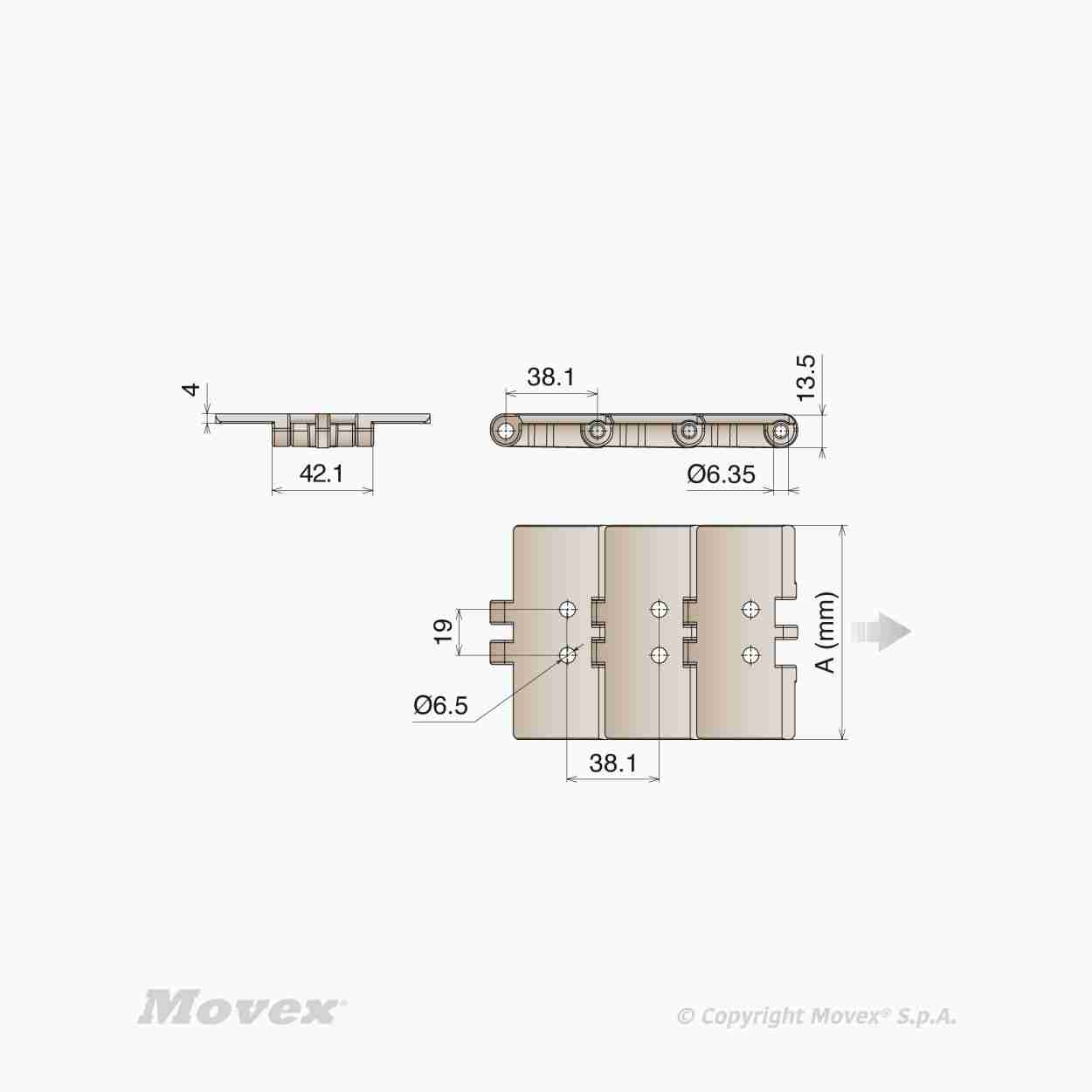

d. Movex 820 TAB K750 Plastic Flattop Chain

• Technical Specifications:
  • Maximum load: 3500 N.
  • Material: GT plastic.
  • Minimum curve radius: 90 mm.
  • Operating temperature: -40°C to +60°C.
  • Maximum speed: 85 m/min​​.
• Applications:
  Suited for food and pharmaceutical systems.

e. Movex 880 TAB K450 Plastic Flattop Chain

• Technical Specifications:
  • Maximum load: 4800 N.
  • Material: High-performance plastic.
  • Minimum curve radius: 80 mm.
  • Operating temperature: -20°C to +90°C.
  • Maximum speed: 100 m/min​.
• Applications:
  Ideal for heavy-duty industries.

---

Comparison of Technical Specifications

Product Code	Maximum Load (N)	Material	Minimum Curve Radius (mm)	Operating Temperature (°C)	Maximum Speed (m/min)
812 K450	4500	High-performance plastic	120	-30 to +100	85
882 K325	3000	POM plastic	100	-40 to +80	80
1873 TAB K350	2000	PFX plastic	110	-20 to +100	75
820 TAB K750	3500	GT plastic	90	-40 to +60	85
880 TAB K450	4800	High-performance plastic	80	-20 to +90	100

---

Applications of Curved Plastic Flattop Chains

Food Industry

• Maximizes space in production lines.
• Ensures safety and hygiene.

Pharmaceutical Industry

• Enhances transport efficiency.
• Reduces contamination risks.

Heavy-Duty Industries

• Handles heavy loads and resists wear effectively.
• Extends the durability of conveyor systems.

---

Conclusion

Curved plastic flattop chains are essential for modern production. With product lines like 812 K450, 882 K325, and 880 TAB K450, Movex delivers a perfect combination of performance and flexibility. Contact LDCOM, the official distributor for Movex, to learn more​.
