Bộ động cơ bánh răng kép mô-men xoay

Features

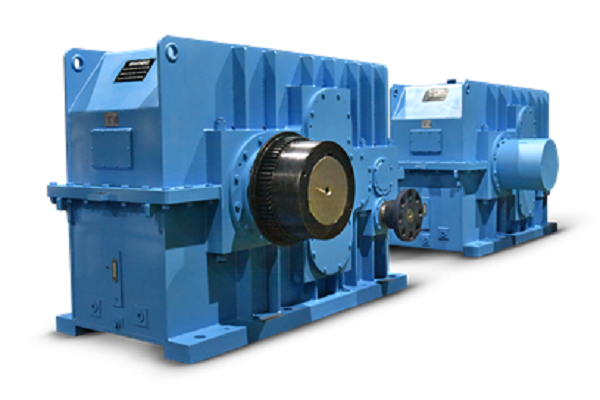

Features: Helical Load Sharing Dual Tandem Gearbox model S4BZ-35. Power Sharing at last two stages to increase Torque Transmission Capacity at a relatively smaller Gear size

Advantages

Dual Tandem system at last two stages to increase power transmission capacity. Three piece housing for ease of maintenance

Technical Specifications

• Motor Power : 250 Kw
• Design Speed :1000 RPM
• Type & Size of gearbox : S4BZ-35 S/So + ISDE + OSDE + FLS
• Ratio : 210/1
• Output Torque Rating  : 1452 KNm

Product Application

600 TPD Sponge Iron Kiln Main Drive

Range

Available in ratios 31.5 to 280 with Torque upto 2100 kN
