Specifications

forged-link-double-series

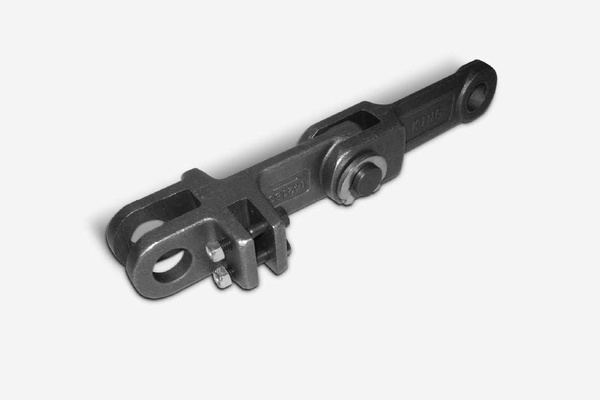

FORGED LINK DOUBLE SERIES
Chain Number	P	T	C	S	Z	G	Bolt Hole Diameter	Breaking Loads			Weight
	P	T	C	S	Z	G	D	TN	CN	CD	Weight
	mm							kN			kg/m
JKF 142182	142	42	50	19	70	13	25	290	320	550	11.80
JKF 142262	142	62	50	28	87	13	25	440	470	790	16.70
JKF 160252	160	50	53	23	82	13	25	370	400	655	13.60
JKF 175402	175	72	60	30	95	16	30	540	580	955	20.30
JKF 200252	200	60	50	25	81	12	25	380	410	670	13.00
JKF 200402	200	70	60	30	95	13	30	540	580	955	19.30
JKF 250252	250	60	50	25	81	12	25	380	410	670	12.00
JKF 250402	250	70	60	30	95	13	30	540	580	955	17.70
JKF 250602	250	100	70	45	140	21	35	975	1050	1720	35.20

Attachement hole positions and sizes can be varied to meet customer requirements. Dimensions in metric measure.

Highlights of forged-link-double-series

This series represents the leading product within the John King programme. Forged fork link chain has proven to be one of the most reliable conveying mediums offering a combination of versality, strength and abrasion resistance. These chains, originally of european origin, are now established worldwide. With a wide variety of materials, heat treatments and flight formats the chain is proven in both drag and enmasse handling.
