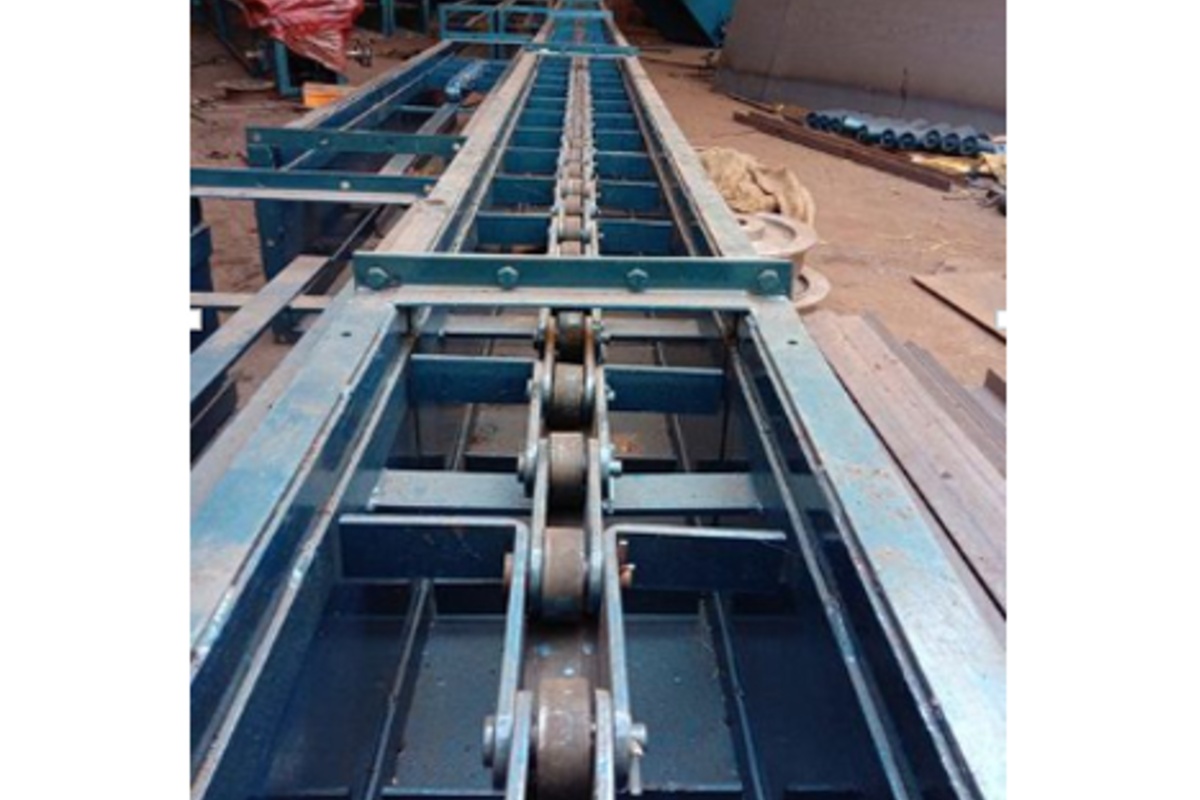

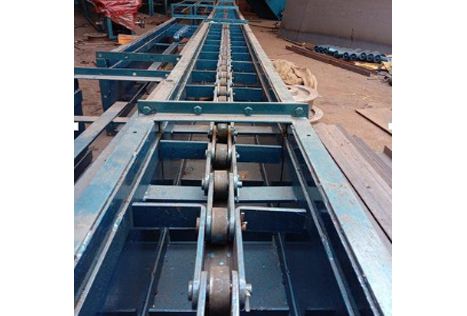

Crusader Heavy Duty Steel Drag Chains (WHX)

This welded steel option can be considered in place of cast S series drags and is ideal where conditions of high abrasion and heat prevail.
Fabricated construction with material options in flat and round section for each component allows the construction of CRUSADER to have greater consistency and integrity.
The crusader series employs optimum materials and heat treatment conditions to ensure good resistance to shock loading and extended service life. Square edged wing and link plate section creates increased conveying efficiency and transport of a deeper bed of material.
Hard face welding on all sliding and wear surfaces is standard. A typical weld surface of 60 HRC and with heavy weld bead gives CRUSADER excellent sliding wear resistance in cold and hot clinker applications.
