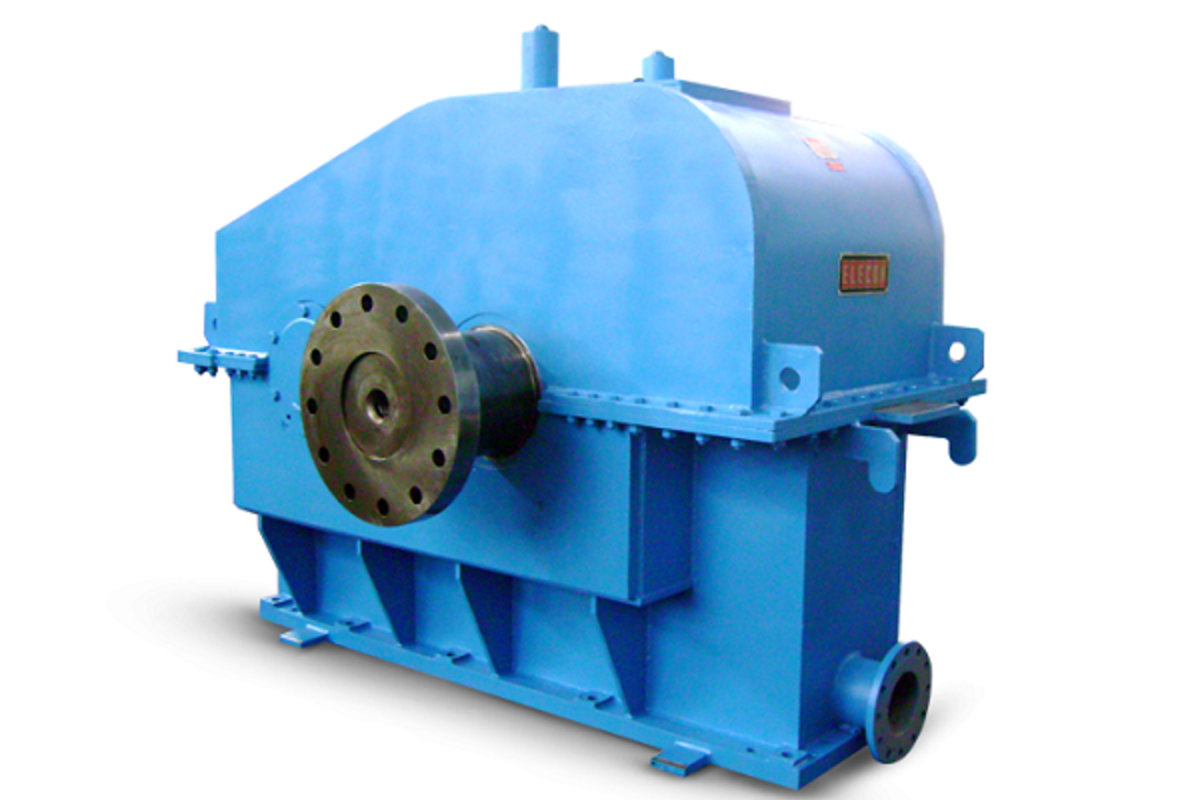

• Elecon engineering has expertise in designing and manufacturing high speed, high power gear boxes.
• TA – Turbo Gear Unit (Double Helical Gear)
• The TA TURBO Gear unit is a single stage step-up or reduction Gear unit with horizontally offset. It is designed as a double helical Gear unit.
• High Gearing quality and tooth flank modification adapted to actual tooth load allow for extremely high pitch line velocity.
• Double helical Gear units are simple to design & manufacture and compact. Double helical gearboxes are more efficient than single helical gear boxes.
• This Gear unit is used in high speed plants such as turbo generators, turbo Compressor, Boiler feed pump application etc.
• TAD – Turbo Gear Unit (Single Helical Gear)
• The TAD turbo Gear unit is a single stage step-up or reduction gearbox with horizontally offset. It is designed as a single heical gearunit.to the thrust collar technique.The tooth thrust resulting from helical teeth is being compensated through thrust collar.

DESCRIPTION

APPLICATIONS

• Gas Turbine
• Steam Turbine
• Pumps
• Compressor
• ID/FD Fan
• Blowers
• Test Rig
• Special Application

DESIGN

• Design is based on RENK guidelines .Elecon had co-operation with RENK for High speed gear Boxes from 1988 to 1994.

DESIGN STANDARDS

• AGMA – 6011
• AGMA – 6010
• API-613 ( 5 TH EDITION )
• API-677 ( 2 ND EDITION )
