MEDIUM WIND TURBINE GEARBOX - SDNK 1400
4 5 (1 evaluate)Category: Wind Mill Gear Box For Power Generation

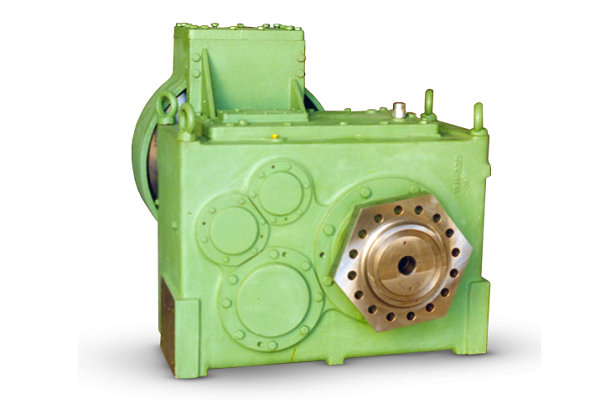

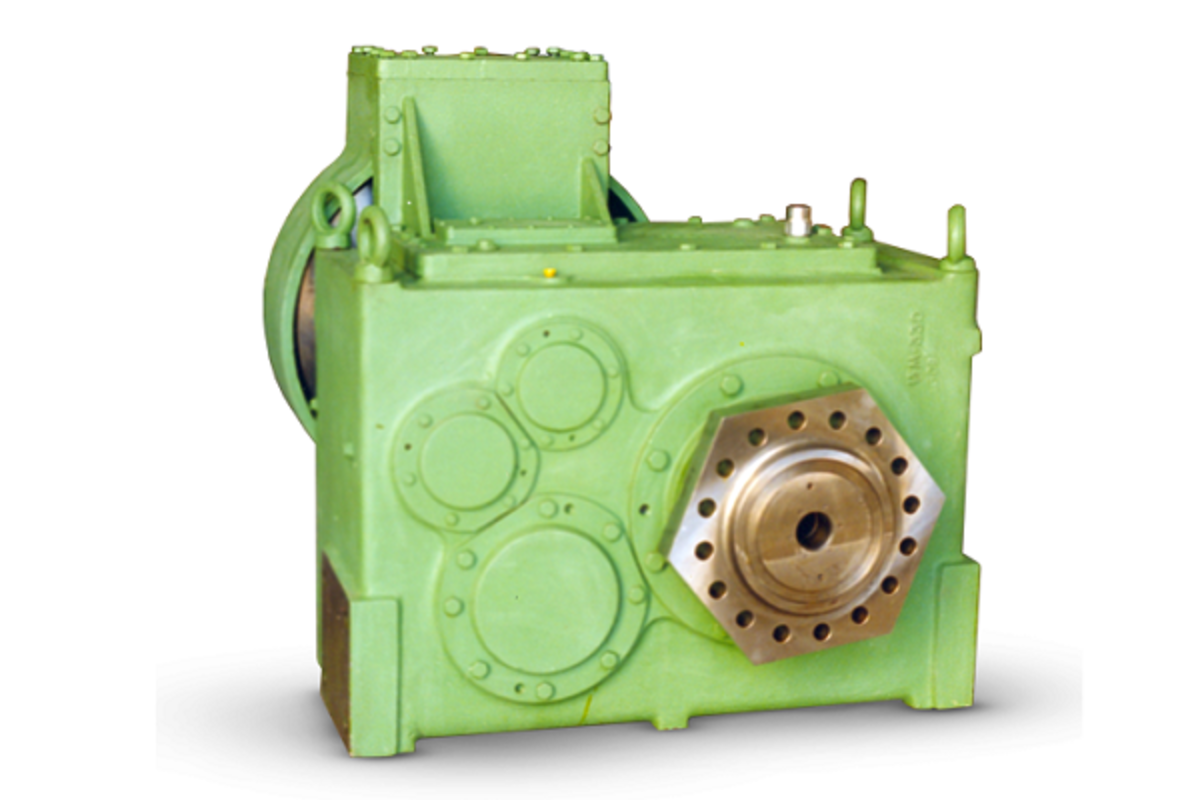

Elecon manufactures highly demanding wind turbine gearboxes under technical collaboration with Wind Master of Belgium. Structure of the SDNK 1400 wind mill gearbox not only supports the power generator and disc brake, but also the wind turbine blades through a hexagonal flanged low speed shaft. The wind mill gearbox case and adopter are specially developed for this purpose out FG 320 material. This wind turbine gearbox’s internals are carburized, hardened, ground and profile corrected for speed increasing application. Gear tooth and bearings are splash lubricated.
The wind mill gearbox is supported on Nacelle trough sturdy brackets and operates at a height of 40 meters off ground. Hydraulic cylinder shaft maneuvering the blade angle is also accommodated in the gearbox casing.
TECHNICAL SPECIFICATIONS
| Wind Mill Gearbox | SDNK 1400 |
| Power | 300 kW |
| Turbine Shaft Speed | 43 rpm |
| Generator Shaft Speed | 1512 rpm |
| Speed increasing Ratio | 1 / 35.1487 |
| Weight | 4000 kg. approx. |
| Features | Helical speed increaser gear box suitable upto 100 Kw Wind Mill |
| Advantages | Specially designed speed increaser for wind mills |
| Technical Specifications | Suitable upto 350 kw power generation and ratio upto 1/40 |
| Product Application | Wind Mill for Wind Power Generation |
| Range | Wind Mill for Wind Power Generation |
APPLICATIONS
- Wind Mill
- Small & Medium Wind Turbine
- High Capacity Wind Turbine
