DOUBLE REDUCTION GEAR
4 5 (1 evaluate)Category: Worm Gearboxes SNU, ER, Double Reduction

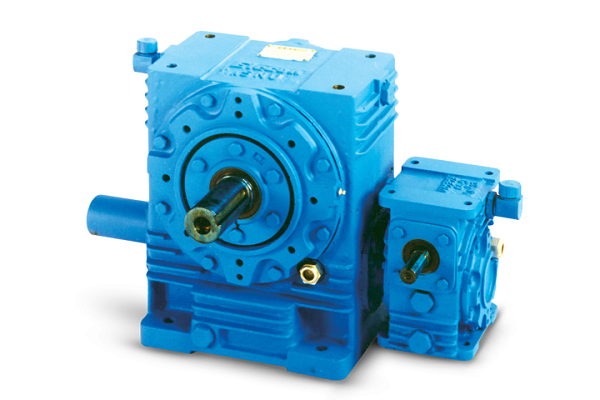

Double Reduction Worm Gear Units are constructed using two single reduction worm gear units. The primary worm gear unit is specially designed to mount integrally on a standard single worm gear unit which forms the secondary stage. The complete gear unit becomes compact and rigid in arrangement for slow moving machinery. A wide range of ratio from 75:1 to 4900:1 is available. These gear units are particularly suitable for high torque slow-speed drives. Worm gearing conforms to BS-721.
098 437 00 59
Highlights of DOUBLE REDUCTION GEAR
DESCRIPTION
| Underdriven | SNU-UD / SFUD |
| Overdriven | SNU-OD / SFOD |
| Verticle output shaft | SNU-VD / SFVD ( UP/down ) |
| Hollow output shaft | SNU-SMD /SSMD |
| Sizes | 1¾/30, 2¼ /40, 2¼ /50, 3/60, 3/70, 4/80, 4/90, 5/105 , 5/120 , 6/140 , 7/170 |
| Ratio | Min. 75 : 1 to Max 4900 : 1 |
| Power Capacity | 50 kW |
APPLICATIONS
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
